Optimized for 20/30 Series Aluminum Profile Drilling

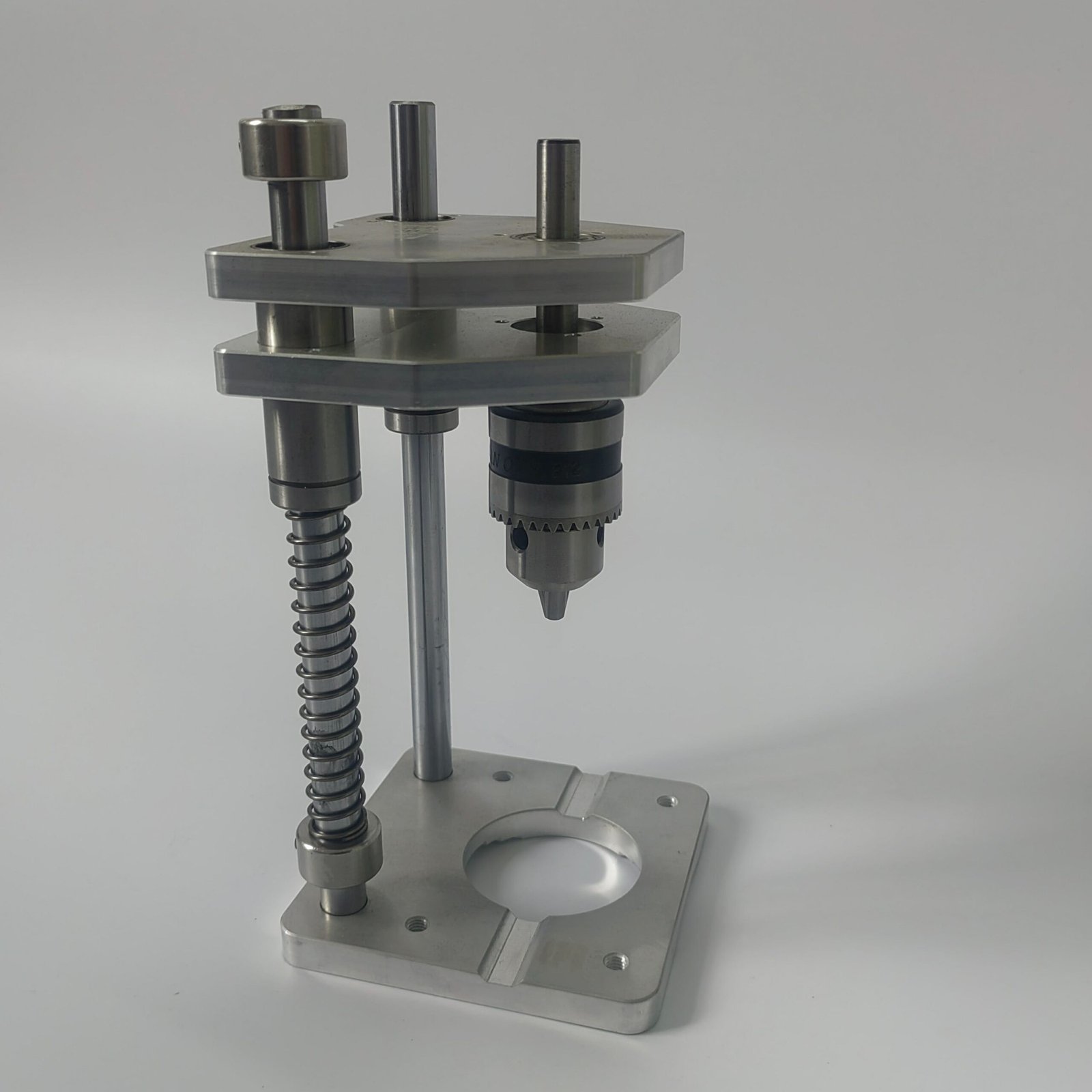

Custom-Made High-Rigidity, High-Precision Stand

plus 40-slot & 2040 adapter plates optional





✅ Profile-Specific Optimization: Tailored for 20/30/40 series aluminum profile drilling. Precisely fits 2020/3030 profiles for quick centering and mounting. Long shaft version (see Fig.8), 40-slot base, and 2040 adapter plates are available to meet diverse processing needs.

✅ CNC Precision Machining: Base plate and drill clamp are fully CNC milled (not drilled), delivering far higher concentricity and perpendicular accuracy than generic “bearing seat + hand-drilled aluminum plate” alternatives. Drilling deviation ≤0.1mm, eliminating drift and hole breakage.

✅ Full-Metal High Rigidity: Crafted from 6061 aerospace aluminum, with three core plates thickened to 10mm. Paired with 12mm hardened 45# steel shafts, it resists corrosion and rust, maintaining a smooth finish while staying durable and deformation-free for long-term use.

✅ Dual-Bearing Stable Structure: Equipped with a high-concentricity hardened taper chuck (clamping range 1.5–10mm). Dual-bearing double-seat design minimizes runout and vibration, ensuring stable vertical drilling even for beginners.

✅ Universal & Expandable: Compatible with 99% of common handheld drills (cordless/corded). The specialized base features a front groove for cylindrical workpiece drilling and a back groove for direct mounting on 20/30 profiles. Default base excludes 40-slot; please note if required.









🔨 Aluminum Profile Assembly: Precision drilling for DIY cases, workbenches, and shelves without damaging profiles.

🔨 Woodworking & DIY: Stable vertical drilling on wood/acrylic, eliminating handheld drill wobble.

🔨 Small Metal Fabrication: Accurate hole making for metal parts and cylindrical workpieces.

🔨 Home Repair: Fast positioning for shelf/bracket installation, boosting efficiency.









Unlike cheap “assembled aluminum plate” alternatives, our stand uses CNC precision milling for every hole and plate. The full-metal structure balances lightweight portability and industrial-grade strength, making it the cost-effective choice to upgrade your handheld drill to a mini press—ideal for DIYers and small workshops alike.
